Eaton Wiring Devices

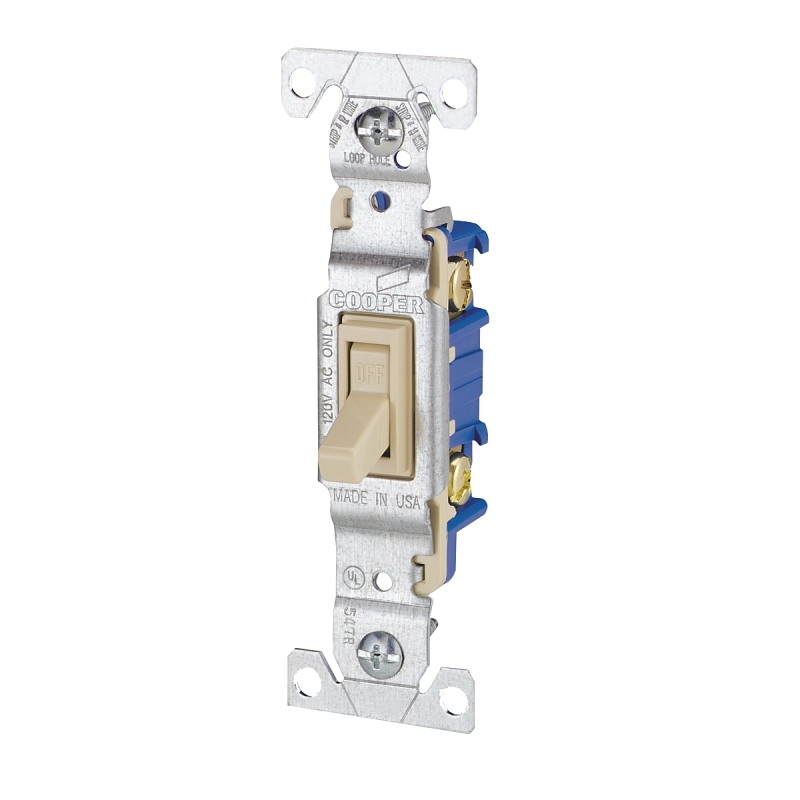

Eaton Wiring Devices 1301V Toggle Switch, 120 V, Wall Mounting, Polycarbonate, Ivory

Item Code: 9231952

Category Switches, Outlets & Plates

Manufacturer EATON WIRING DEVICES

Minimum quantity 10

9231952

Description

Longer, wider strap on toggle switches provides 40% more contact area to wallboard. Virtually eliminates floating installations. Industrial design cam-action mechanism insures quiet switch action. Patented built-in wire stripper for #14 and #12 wire to speed installation. Unbreakable top and bottom housing eliminates call-backs due to jobsite breakage. Patented built-in wire looper for pre-looping. Three-way switches feature additional push-in common termination for feed-through tapping. Push-in terminals accept #14 solid wire only. Side wire terminals accept up to #10 solid or stranded wire. Tri-combo screws accept slotted, Phillips and Robertson head tools for installations in both the US and Canada.

Specifications

UNSPSC Code

35.353.353

Weight

0.14lb

Height

3.5in

Width

4.38in

Length

5.88in

Action

Quiet

Actuator Type

Toggle

Brand

Eaton Wiring Devices

Category

SWITCHES & RECEPTACLES

Color

Ivory

Contact Material

Silver

Current Rating

15

Dielectric Strength

1500

Dimensions

42 in L x 13 in W x 1103 in D

Finish

Ivory

Housing Material

Polycarbonate

Includes

1/2 hp Motor

Mounting Type

Wall

Number Of Poles

1

Temperature Rating

-20 To 60

Terminal Type

Push-in

Voltage Rating

120

Wattage Rating

05
