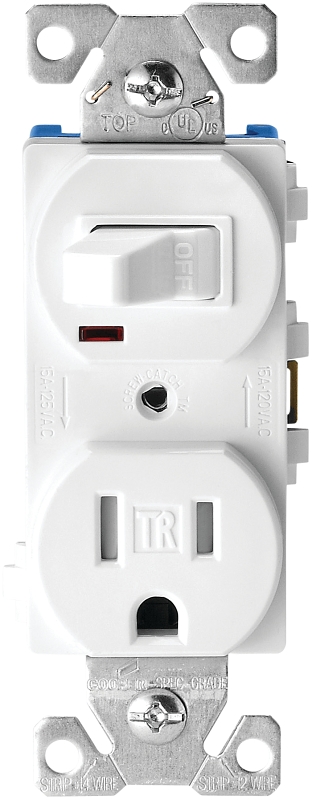

Eaton Cooper Wiring TR274W Heavy-Duty Combination Switch/Receptacle, 120 V Switch, 125 V Receptacle, 2-Pole

Item Code: 9235672

Category Switches, Outlets & Plates

Manufacturer EATON WIRING DEVICES

9235672

Description

Traditional heavy-duty-grade combination switch with receptacle features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR274 features a neon pilot light which is On when switch is On. Switch is horsepower-rated for motor loads per UL 20. Thermoplastic toggle, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.

Specifications

UNSPSC Code

35.353.353

Weight

0.05lb

Height

4.5in

Width

4in

Length

9.25in

Brand

No Brand

Category

SWITCHES & RECEPTACLES

Enclosure Rating

NEMA 5-15 TR

Finish

Zinc Plated

Grounding Style

Ungrounded

Material

Thermoplastic

Mounting Type

Threaded

Number Of Poles

2 (Receptacle), 1 (Switch)

Number of Wires

3

Overall Depth

1.08 in

Overall Length

4.19

Overall Width

1.3

Receptacle Amperage Rating

15 A

Receptacle Voltage Rating

125 VAC

Series

TR274

Standards

cULus Listed, NOM 426 Certified, RoHS Compliant, UL Listed

Switch Amperage Rating

15 A

Switch Voltage Rating

125 V

Terminal Type

Screw

Type

3-Way, Tamper Resistant

Wire Size

12 - 14
