Simpson Strong-Tie

6" Strong-Drive® SDWC® TRUSS Screw

Item Code: SDWC15600KT
Category Structural Hardware
Manufacturer Simpson Strong-Tie
  • Fully threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members
  • Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades
  • Wide tolerance on installation angle makes it easy to install the SDWC correctly
  • Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
  • Metal installation guide tool (included) to help ensure proper installation
Simpson Strong-Tie

6" Strong-Drive® SDWC® TRUSS Screw

Category Structural Hardware
SDWC15600KT SDWC15600KT
SDWC15600KT SDWC15600KT
SDWC15600KT SDWC15600KT

Description

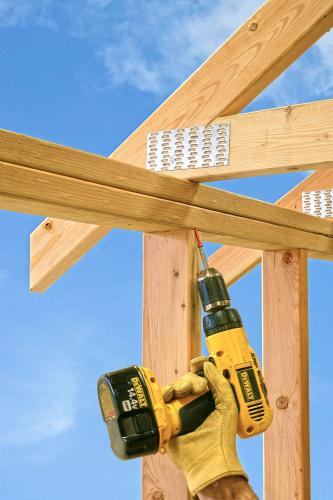

The Strong-Drive SDWC Truss screw provides a stud-to-bottom plate or stud-to-top plate connection as well as fastening trusses and rafters to top plates. The fully-threaded shank engages the entire length of the fastener, providing a secure connection. The SDWC is tested in accordance with ICC-ES AC233 (screw) and AC13 (wall assembly and roof-to-wall assembly) for uplift and lateral loads between wall plates and vertical wall framing and between the top plate and the roof rafters or trusses. It is code listed under IAPMO-UES ER-262 and meets 2018 and 2021 IRC® and IBC® code requirements for most common wood framing applications.

Specifications

Made In

US

Brand

Simpson Strong-Tie

Category

STRUCTURAL HARDWARE

Manufacturer

Simpson Strong-Tie

Starting from
$59.99 / EA
/
excl. TAX
- +
Check stock in other branches
